Mixed Metal Oxide (MMO) Ribbon Anodes have become an integral component in modern cathodic protection systems, playing a crucial role in safeguarding metal structures from corrosion. These innovative anodes are designed to provide long-lasting protection, but one question often arises among engineers and asset managers: What is the lifespan of MMO Ribbon Anodes? Understanding the longevity of these anodes is essential for planning maintenance schedules and ensuring the continued effectiveness of cathodic protection systems. In this comprehensive guide, we'll delve into the factors that influence the lifespan of MMO Ribbon Anodes and explore strategies to maximize their service life.

How do MMO Ribbon Anodes work in cathodic protection systems?

MMO Ribbon Anodes are at the forefront of cathodic protection technology, offering an efficient and durable solution for corrosion prevention. To understand their lifespan, it's crucial to first grasp how these anodes function within a cathodic protection system.

Cathodic protection is an electrochemical technique used to control the corrosion of metal surfaces in various environments, such as underground pipelines, offshore structures, and reinforced concrete. The principle behind this method is to generate a protective current that counteracts corrosion on metallic structures, thereby preventing it from participating in the corrosion reaction. This is achieved by introducing an external anode that sacrifices itself to protect the metal structure.

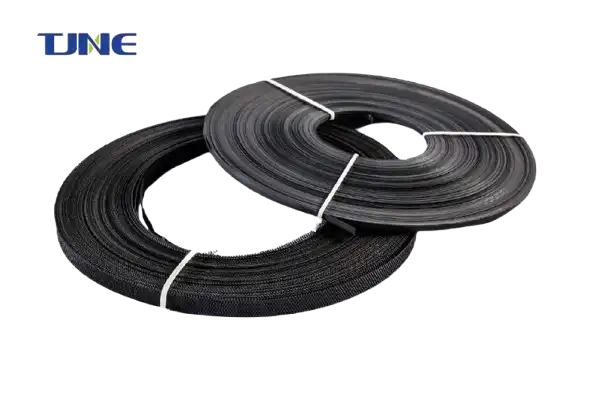

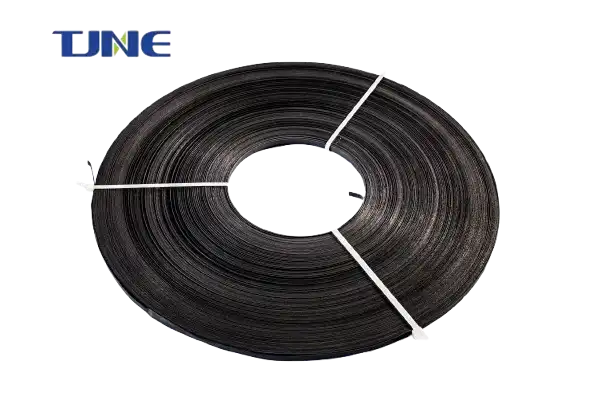

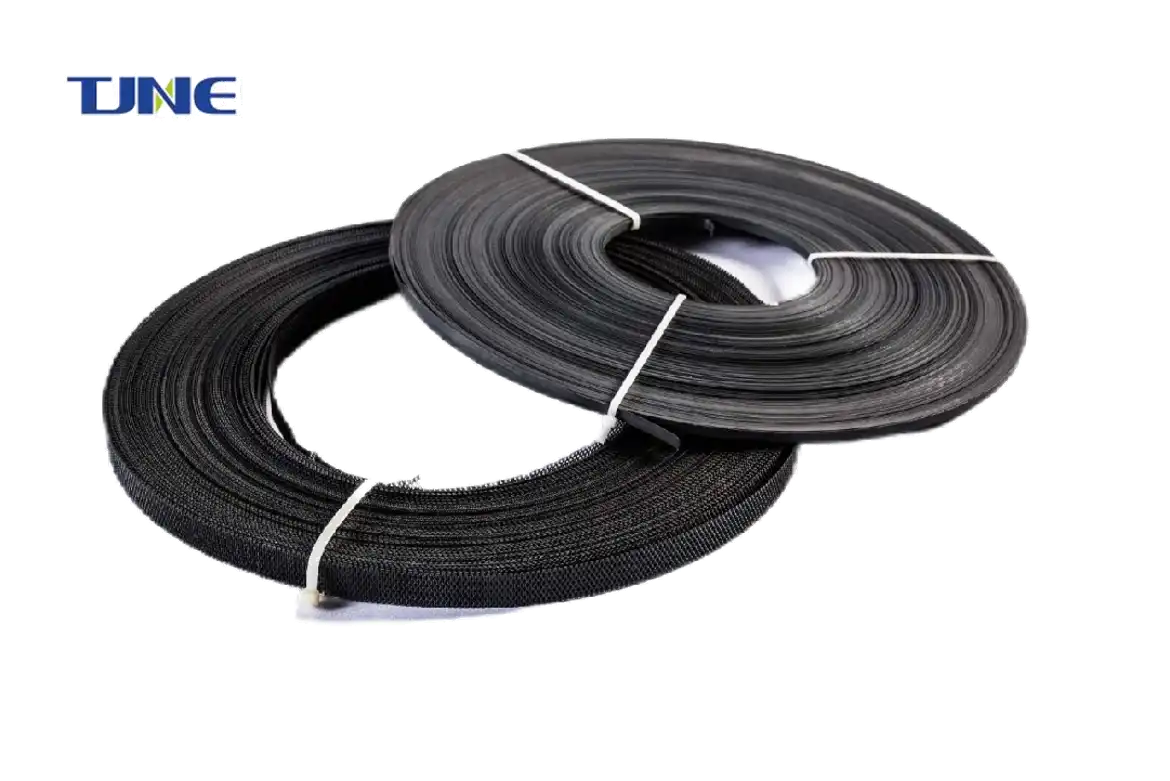

MMO Ribbon Anodes are a type of impressed current anode, meaning they require an external power source to function. The ribbon anode is typically made of a titanium substrate coated with a mixture of precious metal oxides, such as iridium, ruthenium, and tantalum. This coating is what gives the anode its "mixed metal oxide" designation.

When an electric current is applied, the MMO Ribbon Anode releases electrons into the surrounding electrolyte (soil, water, or concrete). These electrons flow through the electrolyte and are collected by the metal structure being protected, effectively shifting its electrical potential to a more negative value. This negative shift in potential makes the metal structure less likely to corrode.

The ribbon shape of these anodes offers several advantages:

1. Uniform current distribution: The elongated shape allows for a more even distribution of protective current along the length of the structure being protected.

2. Flexibility in installation: MMO Ribbon Anodes can be easily installed in various configurations, making them suitable for a wide range of applications, from pipelines to complex concrete structures.

3. Low resistance: The ribbon design provides a large surface area relative to its volume, resulting in lower resistance and more efficient current output.

4. Durability: The titanium substrate and precious metal oxide coating contribute to the anode's resistance to wear and chemical degradation, leading to an extended lifespan.

The effectiveness of MMO Ribbon Anodes in cathodic protection systems lies in their ability to maintain a consistent current output over time. As the anode operates, it undergoes a gradual consumption process. However, unlike traditional sacrificial anodes made of materials like zinc or magnesium, MMO anodes have a much slower consumption rate due to their advanced composition.

The current output of MMO Ribbon Anodes can be precisely controlled and adjusted as needed, allowing for optimized protection of the metal structure. This level of control is particularly beneficial in environments where corrosion risks may vary over time or in different areas of the protected structure.

What factors affect the longevity of MMO Ribbon Anodes?

The lifespan of MMO Ribbon Anodes can vary significantly depending on a multitude of factors. Understanding these influences is crucial for accurately predicting and maximizing the service life of these important components in cathodic protection systems. Let's explore the key factors that affect the longevity of MMO Ribbon Anodes:

1. Current Density:

The current density at which the anode operates is perhaps the most critical factor affecting its lifespan. Higher current densities result in faster consumption of the anode material. The relationship between current density and anode life is generally inverse – as current density increases, the expected lifespan decreases. It's essential to design the cathodic protection system with appropriate current densities to balance protection effectiveness and anode longevity.

2. Environmental Conditions:

The environment in which the MMO Ribbon Anode is installed plays a significant role in determining its lifespan:

a) Electrolyte Resistivity: In environments with high resistivity, such as dry soils or freshwater, the anode may need to operate at higher voltages to maintain the required current output, potentially accelerating wear.

b) Temperature: Higher temperatures can accelerate chemical reactions and increase the rate of anode consumption.

c) pH Levels: Extreme pH levels, either highly acidic or alkaline, can affect the stability of the anode's coating and substrate.

d) Presence of Chlorides: In chloride-rich environments, such as seawater or deicing salts, the anode may experience accelerated degradation.

3. Anode Composition and Quality:

The composition of the mixed metal oxide coating and the quality of the manufacturing process significantly impact the anode's lifespan. High-quality anodes with optimized coating compositions tend to have longer lifespans. The thickness and uniformity of the coating also play a role in determining the anode's durability.

4. Installation Method:

Proper installation is crucial for ensuring the longevity of MMO Ribbon Anodes. Factors such as proper backfill material, adequate spacing between anodes, and correct electrical connections all contribute to the anode's performance and lifespan. Poor installation practices can lead to localized high current densities or physical damage, reducing the anode's effective life.

5. System Design:

The overall design of the cathodic protection system impacts anode longevity. Factors to consider include:

a) Anode Spacing: Proper spacing ensures uniform current distribution and prevents localized high current densities.

b) Redundancy: Including redundant anodes in the system design can help distribute the current load and extend the overall system lifespan.

c) Current Control: Implementing sophisticated current control systems can help optimize anode performance and extend their life by adjusting output based on protection requirements.

By carefully considering and managing these factors, engineers and asset managers can work towards optimizing the lifespan of MMO Ribbon Anodes in their cathodic protection systems. It's important to note that while these factors provide a general framework for understanding anode longevity, each installation is unique and may require specific considerations and expertise to accurately predict and maximize anode life.

How can you maximize the service life of MMO Ribbon Anodes?

Maximizing the service life of MMO Ribbon Anodes is crucial for ensuring long-term, cost-effective cathodic protection. By implementing best practices and leveraging advanced technologies, it's possible to significantly extend the lifespan of these anodes. Here are comprehensive strategies to help you achieve optimal performance and longevity from your MMO Ribbon Anodes:

1. Optimize System Design:

A well-designed cathodic protection system is fundamental to maximizing anode life. Consider the following design aspects:

a) Accurate Modeling: Utilize advanced computer modeling techniques to simulate current distribution and anode performance. This helps in optimizing anode placement and sizing.

b) Proper Sizing: Ensure that anodes are sized correctly for the anticipated current demand, with a safety factor to account for potential increases in protection requirements over time.

c) Strategic Placement: Position anodes to achieve uniform current distribution across the protected structure, minimizing localized high current densities.

d) Redundancy: Incorporate redundant anodes in critical areas to distribute current load and provide backup in case of individual anode failure.

2. Implement Advanced Control Systems:

Modern control systems can significantly enhance anode performance and longevity:

a) Auto-Potential Control: Implement systems that automatically adjust current output based on the structure's protection potential, preventing overprotection and unnecessary anode consumption.

b) Remote Monitoring: Utilize remote monitoring technologies to track anode performance in real-time, allowing for quick response to any issues.

c) Data Analytics: Employ data analytics to identify trends in anode performance, enabling predictive maintenance and optimization of operating parameters.

3. Enhance Installation Practices:

Proper installation is critical for anode longevity:

a) Quality Backfill: Use high-quality, low-resistivity backfill material around the anodes to ensure good electrical contact and reduce localized high current densities.

b) Careful Handling: Train installation teams on proper handling techniques to prevent damage to the anode coating during installation.

c) Secure Connections: Ensure all electrical connections are secure and properly insulated to prevent corrosion and maintain consistent current flow.

4. Implement Comprehensive Maintenance Programs:

Regular maintenance is key to extending anode life:

a) Scheduled Inspections: Conduct regular visual and electrical inspections of the anode system to identify any signs of degradation or performance issues.

b) Performance Testing: Regularly test anode output and structure potential to ensure the system is operating within design parameters.

c) Proactive Repairs: Address any identified issues promptly to prevent accelerated wear or system failure.

5. Manage Environmental Factors:

While environmental conditions can't always be controlled, steps can be taken to mitigate their impact:

a) Drainage Improvement: In areas with high soil resistivity, consider improving drainage to maintain consistent moisture levels around the anodes.

b) Shielding: In harsh environments, implement shielding techniques to protect anodes from extreme conditions or mechanical damage.

c) Chemical Treatment: In some cases, controlled chemical treatment of the surrounding environment may help maintain optimal conditions for anode performance.

By implementing these strategies, asset managers and engineers can significantly extend the service life of MMO Ribbon Anodes, ensuring more effective and economical cathodic protection systems. It's important to note that while these approaches provide a comprehensive framework for maximizing anode life, each cathodic protection system is unique and may require tailored solutions based on specific operational and environmental conditions.

The lifespan of MMO Ribbon Anodes is a critical consideration in the design and maintenance of cathodic protection systems. While these anodes are known for their durability and efficiency, their longevity can vary significantly based on numerous factors. By understanding how MMO Ribbon Anodes work, recognizing the factors that affect their lifespan, and implementing strategies to maximize their service life, engineers and asset managers can ensure optimal performance and cost-effectiveness of their cathodic protection systems.

As technology continues to advance, we can expect further improvements in MMO Ribbon Anode design and cathodic protection system management. Staying informed about these developments and adapting best practices accordingly will be key to achieving ever-increasing anode lifespans and more effective corrosion protection strategies in the future.

If you are interested in the products of Xi'an Taijin New Energy Technology Co., Ltd., please contact yangbo@tjanode.com.

References:

1. NACE International. (2021). Cathodic Protection - An Overview. Houston, TX: NACE International.

2. Revie, R. W., & Uhlig, H. H. (2008). Corrosion and Corrosion Control: An Introduction to Corrosion Science and Engineering. John Wiley & Sons.

3. Baeckmann, W. V., Schwenk, W., & Prinz, W. (1997). Handbook of Cathodic Corrosion Protection. Gulf Professional Publishing.

4. DNV GL. (2019). Recommended Practice DNVGL-RP-B401 Cathodic Protection Design. DNV GL AS.

5. Shreir, L. L., Jarman, R. A., & Burstein, G. T. (1994). Corrosion: Metal/Environment Reactions. Butterworth-Heinemann.

6. Roberge, P. R. (2008). Corrosion Engineering: Principles and Practice. McGraw-Hill Education.

7. Peabody, A. W. (2001). Control of Pipeline Corrosion. NACE International.

8. Bushman, J. B. (2010). Corrosion and Cathodic Protection Theory. Bushman & Associates, Inc.

9. Lazzari, L., & Pedeferri, P. (2006). Cathodic Protection. Polipress.

10. NACE International. (2013). CP 3 - Cathodic Protection Technologist Course Manual
