Electronic Titanium Anode Rod
2.Coating: Iridium-tantalum coating, ruthenium-iridium coating and platinum coating. Anode coatings may be selected to match fresh water, brackish water, seawater, coke, or sand environments
3.Specification: Customized according to customer requirements
4.Application: Suitable for cathodic protection project of water heater, water tank, heat exchanger and so on
5.Service: Providing substrate composition detection; process inspection (machining size, sandblasting particle size, pre-treatment surface condition, etc.); finished product testing (accelerated life testing, coating bonding strength testing, coating thickness testing, etc.)
The electronic titanium anode rod is a high-performance and reliable product designed for various applications. This product is manufactured by TJNE, a leading supplier of it in the industry. With strong technical expertise, TJNE offers a complete one-stop solution with excellent after-sales service, comprehensive certification and testing reports, fast delivery, and secure packaging. For inquiries or to purchase this product, please contact yangbo@tjanode.com. The electronic titanium anode rod utilizes advanced technology and chemical properties for efficient performance. It is made up of a titanium substrate coated with a special mix of oxide materials. This unique structure ensures a long service life and reliable corrosion resistance in various environments.
Specification and parameter
|
Diameter (mm) |
Length (mm) |
Weight (Kg) |
Surface (m2) |
Current output (soil/ freshwater) |
Current output (seawater) |
Life (a) |
|---|---|---|---|---|---|---|
| D1.5 | 1000 | 0.008 | 0.005 | 0.5A | 3.0A | 20 |
| D2.0 | 1000 | 0.014 | 0.006 | 0.6A | 3.6A | 20 |
|
D6.0 |
1000 |
0.127 |
0.017 |
1.9A |
11.4A |
20 |
|
D12.7 |
1000 |
0.570 |
0.040 |
4.0A |
24.0A |
20 |
|
D16.0 |
1000 |
0.904 |
0.050 |
5.0A |
30.0A |
20 |
|
D25.0 |
1000 |
2.208 |
0.079 |
7.9A |
47.4A |
20 |
|
D32.0 |
1000 |
3.617 |
0.100 |
10.0A |
60.0A |
20 |
System composition and advantage

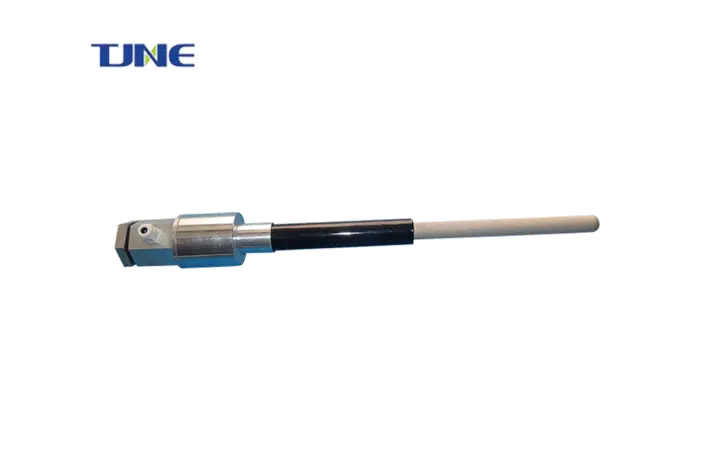

Electronic titanium anode rod consists of a titanium substrate, an oxide coating, and a connection terminal. The titanium substrate provides excellent mechanical strength, while the oxide coating enhances the corrosion resistance. The connection terminal allows for easy installation and connection to the power source. It has the following features:
Superior corrosion resistance in soil, freshwater and seawater environment
Excellent coating thickness ranging from 8-15 μm
Long service life for more than 20 years
Wide range of diameters available to meet different requirements
Working principle
Electronic titanium anode rod works through a combination of electrochemical processes. When connected to a power source, an electrochemical reaction occurs to supply cathodic current to the cathode. Then, cathodic polarization happens in the surface of exposed metal and a large number of electrons are released at the same time, making the potential difference between the cathode and the anode becomes smaller until it disappears and ensuring continuous protection against corrosion.
Application
Water Heater

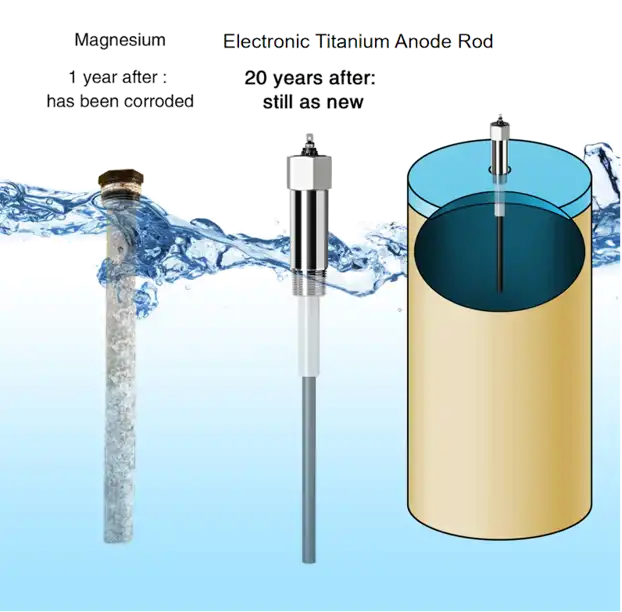

Electronic titanium anode rods are often used in water heaters to protect the inner tank from corrosion. The titanium anode rod helps extend the life of the water heater.

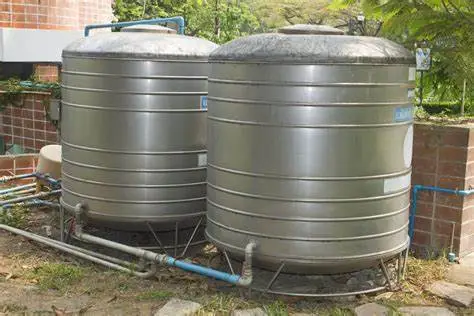

Water Tank
These anode rods can also be employed in water storage tanks, including both residential and industrial tanks, to prevent corrosion and extend the tank's lifespan.

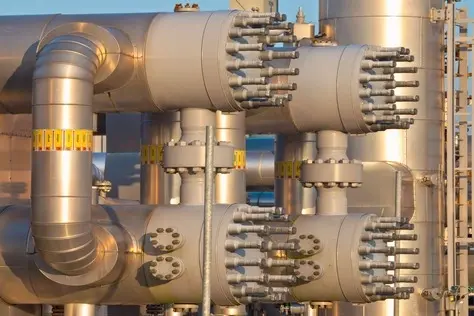

Heat Exchanger
Heat exchangers used in various industries, such as HVAC systems and industrial processes, can utilize electronic titanium anode rods to prevent corrosion and maintain efficient heat transfer.

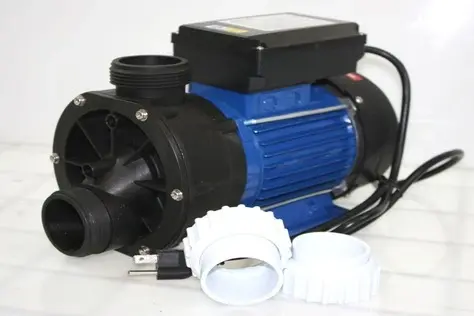

Water Pump
In some systems, electronic titanium anode rods can be used to protect components like water pumps, ensuring they remain corrosion-free and operational.

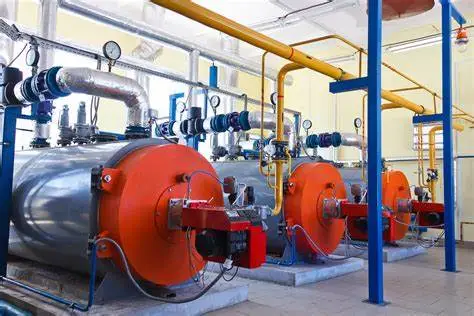

Boiler
It can be installed in boilers to prevent corrosion and extend the life of the boiler system, especially in industrial and commercial settings.
FAQ
What is the maximum operating temperature of the electronic titanium anode rod?
The electronic titanium anode rod can operate at temperatures up to 90°C.
Can the anode rod be easily installed into existing systems?
Yes, it is designed for easy installation and can be connected to existing systems.
What is the typical service life of the anode rod?
The anode rod has a service life more than 20 years, depending on the application and environmental conditions.
