High Efficiency Copper Dissolution Tank

Product name: High efficiency Copper Dissolution Tank
Product Overview: It is a device used to dissolve copper in the copper foil production process. Its main function is to dissolve copper ions in water to form an electrolyte.
Product advantages: efficient dissolution, stable operation, environmental protection and energy saving, easy maintenance, and high safety.
Technical advantages:
1. Maximize the copper-melting reaction speed and heat release without steam heating.
The negative pressure air formed in the tank is self-primed to reduce energy consumption.
2. The self-developed system improves the copper dissolving efficiency, and the copper dissolving efficiency can reach 260kg/h.
3. The guaranteed copper amount is ≤35 tons (the industry average is 80~90 tons), reducing system costs.
Product after-sales service: We provide timely, high-quality new anode manufacturing and old anode recoating services worldwide.

Copper Foil Anode

Product name: Copper Foil Anode
Product Overview: It is an electrolysis equipment used in the production process of copper foil. Its main function is to perform an electrolysis reaction on the titanium anode plate and reduce copper ions into the copper foil.
Product advantages: excellent electrochemical performance, corrosion resistance, precision processing, reasonable structure, safety, and reliability.
Technical advantages:
Long life: ≥40000kAh m-2 (or 8 months)
High uniformity: coating thickness deviation ±0.25μm
High conductivity: oxygen evolution potential ≤1.365V vs. Ag/AgCl, working condition cell voltage ≤4.6V
Low cost: Multi-layer composite electrode preparation technology reduces cell voltage by 15% and cost by 5%
Product after-sales service: We provide timely, high-quality new anode manufacturing and old anode recoating services worldwide.

Titanium Anode Tank

Product name: Titanium Anode Tank
Product overview: It plays an important role in the production process of electrolytic copper foil. Its performance and quality directly affect the quality and output of copper foil.
Product advantages: good electrochemical performance, corrosion resistance, high-precision processing, reasonable and safe structure, etc.
Technical advantages:
a. Independently developed all-titanium welding technology
b. High precision: inner arc surface roughness ≤ Ra1.6
c. High rigidity: coaxially ≤±0.15mm; diagonal ≤±0.5mm, width ≤±0.1mm
d. High strength: no leakage within 5 years
e. Full specifications: Possessing the design and manufacturing capabilities for anode slots with a diameter of 500~3600mm
Product after-sales service: We provide timely, high-quality new anode manufacturing and old anode recoating services worldwide.

Copper Foil Surface Treatment Machine

Product name: Copper foil surface treatment machine
Product Overview: A device specially used for surface treatment of electrolytic copper foil, aiming to improve the performance of copper foil.
Equipment composition: rewinding and unwinding device, detection system, power system, conductive system,
Spray washing and drying device, spray device, liquid roller transmission sealing device,
Safety/protection devices, electrical equipment, and control systems, electrolytic water washing tanks, etc.
Product after-sales service: We provide timely, high-quality new anode manufacturing and old anode recoating services worldwide.

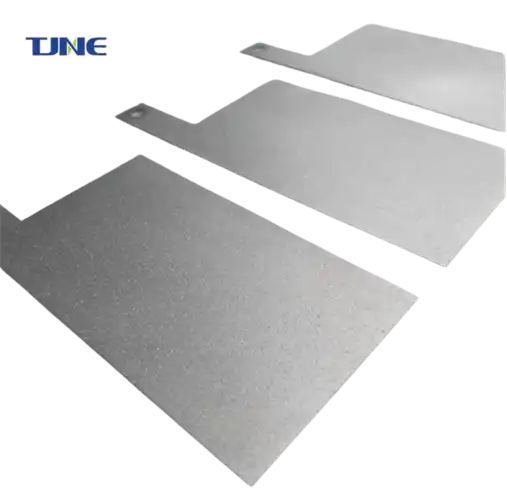

MMO Anode Plate

1.Substrate material: ASTM B 265GR1
2.Specifications: Available in various width, thickness to fit different industrial requirements
3.Coating: Coated with ruthenium and iridium, with a service life more than 20 years
4.Coating thickness: 8-15μm, perfecting the overall effectiveness of the anode
5.Operating temperature: 10°C to 60°C
6.Advantage highlights: long life, low energy consumption, low comprehensive use cost, high cost performance
7.Application: Used for cathodic protection for corrosion prevention in seawater environment

Seawater Electrolysis

1.Material: Made of GR1, GR2 titanium material. Available in plate, mesh shapes with thickness of 1mm, 1.5mm, 2mm, 2.5mm and more.
2.Coating: Coated with ruthenium and iridium, ruthenium- iridium- platinum coatings. The chlorination potential is less than and equal to 1.1V.
3.Coating thickness: 0.2-20μm, maintaining stable operation in seawater electrolysis. Chlorine precipitation anode life >5 years, cathode life >20 years.
4.Working temperature: 5-40°C

Chlorine Electrolysis Cell

1.Material: Made of GR1, GR2 titanium material.
2.Coating: Coated with ruthenium and iridium coatings, with a service life more than 5 years. Generation of effective chlorine concentration: ≥9000 ppm.
3.Coating thickness: 0.2-20μm, maintaining stable operation in seawater electrolysis. Chlorine precipitation anode life >5 years, cathode life >20 years.
4.Specification: Available in 50g/h, 100g/h, 200g/h, 300g/h, 1000g/h, 5000g/h and more.
5.Consumption: Salt consumption: ≤2.8 kg/ kg·Cl, DC power consumption: ≤3.5 kwh/kg·Cl.
6.Application: Animal husbandry disinfection, circulating water descaling, disinfection of drinking water, ship ballast water treatment, chemical manufacturing, and swimming pool disinfection.

DSA Anode

Product name: DSA ANODE
Product Overview: An anode material used in electrochemical processes
The main component of the product: is Ti (titanium).
Product advantages: It has excellent corrosion resistance, low oxygen evolution overvoltage, and does not pollute cathode products.
It is expected to replace the traditional Pb anode and achieve energy saving.
Application areas: metal electrowinning, electroplating industry, microbial fuel cells, electrochemical energy storage systems, environmental protection fields, etc.
Product after-sales and service: We provide timely and high-quality new anode manufacturing and old anode recoating services globally.

Electro-catalytic Oxidation Equipment for Ammonia Nitrogen Degradation

Product name: Electro-catalytic oxidation equipment for ammonia nitrogen degradation
Product Overview: It is an advanced oxidation equipment that uses electrocatalytic oxidation technology to treat ammonia nitrogen wastewater.
Components: electrolytic cell, plate, electrolyte, circulation pump and circulation tank, control system, pH control system, etc.
Product features: rapid response, simple operation, no secondary pollution, high efficiency and energy saving, strong adaptability, etc.
Applicable scenarios: Suitable for the treatment of various types of ammonia nitrogen wastewater.
Conditions of use: Appropriate electrocatalytic oxidation equipment needs to be selected based on wastewater characteristics and treatment requirements.
And adjust operating parameters to achieve optimal processing results.
Product after-sales service: Provide timely and high-quality equipment debugging and installation equipment globally.

Electrochemical Organic Matter Decomposition Equipment

Product name: Electrochemical organic matter decomposition equipment
Product Overview: It is a device that uses electrochemical principles to decompose organic matter.
Components: electrolyzer, plates, electrolyte, DC power supply, control system, etc.
Product features: high decomposition efficiency, simple operation, no secondary pollution, strong adaptability, etc.
Applicable scenarios: Suitable for the treatment of all types of organic wastewater.
Application conditions: Appropriate electrochemical organic matter decomposition equipment needs to be selected based on wastewater characteristics and treatment requirements.
And adjust operating parameters to achieve optimal processing results.
Product after-sales and service: Provide timely and high-quality equipment debugging and installation equipment globally.

Electrode-diaphragm Assembly for Alkaline Water Electrolysis

Product name: Electrode-diaphragm assembly for alkaline water electrolysis
Product overview: flow channel design, processing, anti-corrosion coating processing, and gas diffusion layer coating processing of titanium bipolar plates in PEM electrolyzers.
Product features: No need to open a mold, the plate surface is highly flat, and the front and back plate type flow channels can achieve inconsistent graphics.
Highlights: high processing precision, low internal resistance of the coating, strong bonding force, and low surface contact resistance
Applicable scenarios: Bipolar plate processing design and diffusion layer design inside PEM electrolyzer.
Application conditions: PEM electrolyzer.
Product after-sales and services: bipolar plate coating processing and design, diffusion layer coating processing.

Polymer Electrolyte Membrane(PEM)Electrolyzers

High performance: The energy consumption of a single electrolyzer meets the national first-level energy efficiency standard, and the gas production of a single electrolyzer can reach up to 1500Nm3/h.
Intelligent intelligent operation and maintenance; three-level control management: production management, DCS monitoring, PLC equipment management, chain alarm, automated control to improve operation and maintenance efficiency, safe and stable one-click start and stop, automatic chain shutdown due to misoperation: ensuring personal safety; long lifespan 200,000 hours
