MMO Titanium Probe Anode
2.Parameters of MMO coating: In soil, freshwater environment, the coating is IrO2/Ta2O5 and in seawater environment the coating is IrO2/Ta2O5/Ru2O3; MMO coating thickness is ≥6g/m2; MMO coating resistance (mohm×cm) is 0.0056
3.Parameters of anode: anode consumption rate is less than ≤6mg/A×a; anode resistance is less than 0.007ohm·cm
4.Advantages and features: Easy to install, can be installed directly through the wall from the outside; mall size, lightweight, stable performance, and strong corrosion resistance
5.Applicable scenarios: Probe-type anodes are mainly used in impressed current cathodic protection systems on the inner surfaces of pipelines, water tanks, pressure vessels, etc.

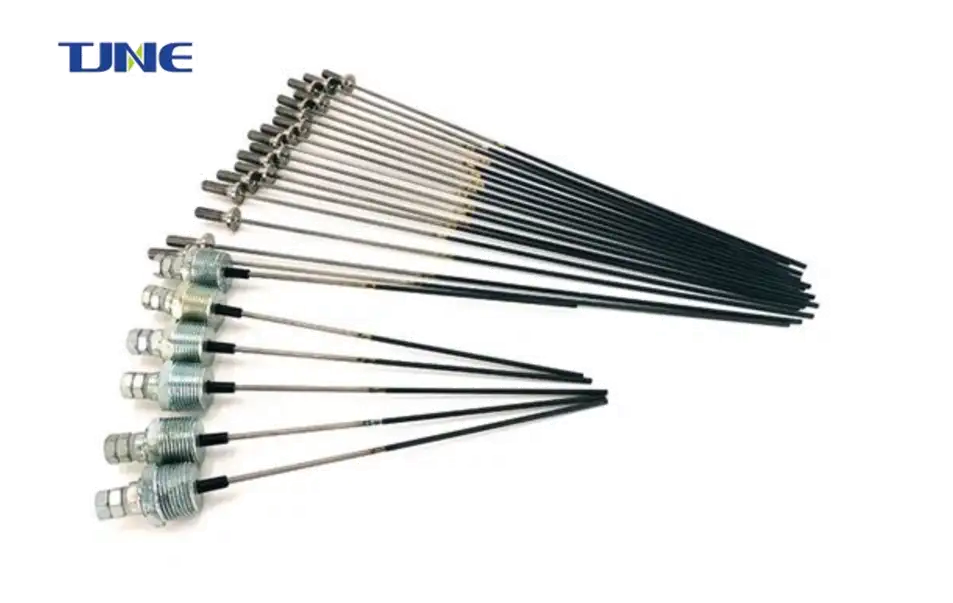

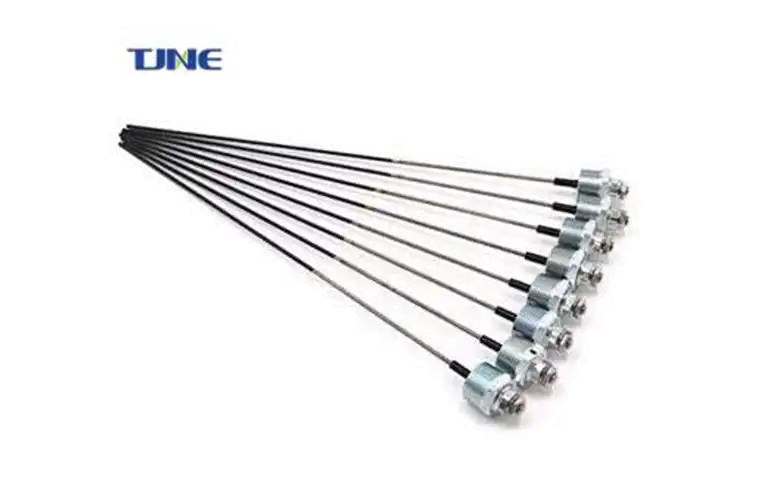

The MMO Titanium Probe Anode consists of a titanium probe with an MMO coating. The probe is inserted into the medium that requires corrosion protection. The MMO coating ensures a large surface area for efficient electrochemical reactions. The main body of the MMO titanium probe anode is an MMO rod anode, which adopts an advanced sealing system, which is composed of a water stop valve, an O-ring sealing ring and epoxy resin, which can be used in a high-pressure working environment after the sealing is completed. The MMO titanium probe anode housing is made of stainless steel, and each anode is waterproof sealed and underwent related tested after production, fully meeting the design requirements.
Mixed-Metal Oxide (MMO) Titanium Probe Anode is composed of a titanium substrate coated with a mixed metal oxide catalyst. The MMO coating enhances the anode's electrocatalytic properties, making it an ideal choice for demanding applications where corrosion prevention is critical.
Our sealing system employs a comprehensive approach with multiple layers to guarantee absolute forestallment of leaks. This scrupulous design ensures that no implicit leaks can compromise the functionality of our product.
To maintain the loftiest quality norms, we subdue every unit to strict tests. This testing covers not only the integrity of the seal but also the electrical resistance, assuring you of a dependable and robust performance.
We have corroborated the anode element to enhance its continuity and safety, particularly in terms of dielectric insulation. This enhancement makes our product stand out by furnishing superior sequestration.
For those seeking enhanced performance or a longer lifetime, we offer the inflexibility to customize the affair and acclimate the lifetime of our products according to your unique requirements. This point empowers you to optimize their performance in line with your specific performance.
| Diameter (mm) | Length (mm) | Weight (Kg) | Surface (m2) | Current output (soil/ freshwater) | Current output (seawater) | Life (a) |
|---|---|---|---|---|---|---|
| D1.5 | 1000 | 0.008 | 0.005 | 0.5A | 3.0A | 20 |
| D2.0 | 1000 | 0.014 | 0.006 | 0.6A | 3.6A | 20 |
Applications

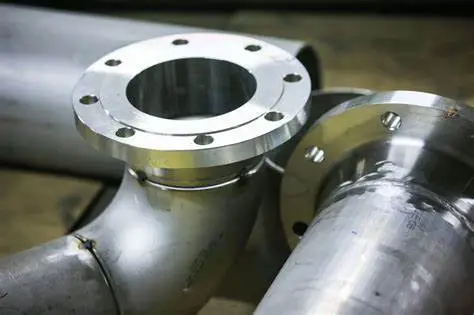

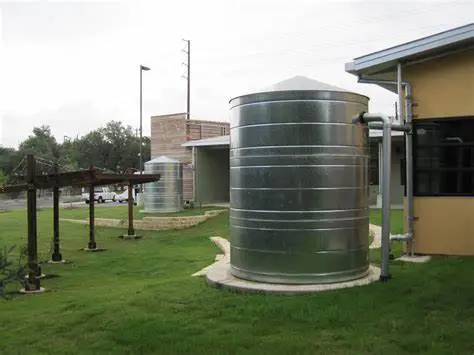

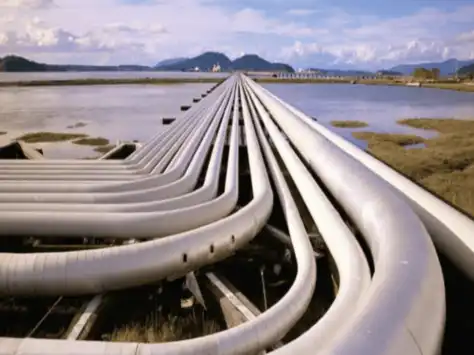

MMO titanium probe anode finds its applications in cathodic protection for pipelines, water tanks and pressure vessels.
FAQ
Can the MMO Titanium Probe Anode be used in high-salinity environments?
Yes, the anode is specifically designed for high-salinity environments and provides excellent corrosion protection.
Is the installation of the anode complicated?
No, the anode is easy to install and requires minimal maintenance.
What is the expected lifespan the it?
The anode has a lifespan of over 20 years, depending on the operating conditions.
