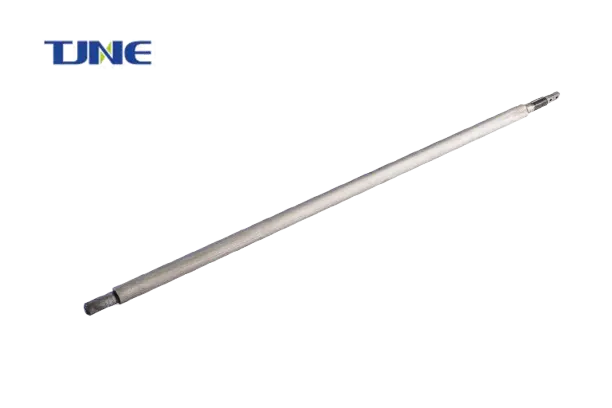

Platinium Coated Titanium Rod
1.Substrate material: TA1, TA2
2.Coating: Platinum with thickness ranging from 0.5-5μm
3.Temperature: less than 80℃
4.pH level: 1-12
5.Service: Providing reports of chemical composition, certificate of conformity, etc. and strict packing and timely delivery.
High-purity titanium rods, with minimal impurities are chosen as the base material for platinum coated titanium rod, since impurities, such as iron, carbon, and nitrogen can affect the mechanical and electrochemical properties of the final product. Committed to product quality, TJNE can provide detailed material certificates indicating the composition and quality of the substrate. The diameter and length of the titanium rods are produced according to the specific requirements of the end industry. For example, in electroplating applications, common diameters range from 5 - 20 mm, and lengths can vary from 0.5 - 3 meters. The anode surface is coated with a thin layer of platinum. The thickness of the platinum coating is at least 0.5 microns and at most 5 microns, with high durability and efficiency in electro-oxidation process. The platinum coated titanium rod offers the excellent performance and corrosion resistance possible by combining the electrochemical qualities of platinum with the strength of titanium.
- Superior Corrosion Resistance: The platinum coating resists corrosion, even in harsh industrial and chemical environments, ensuring long-lasting performance with minimal maintenance.
- High Electrochemical Activity: Platinum’s conductive properties provide efficient electro-oxidation, crucial for effective electro-oxidation reaction.
- Eco-Friendly Performance: With a low-energy consumption design, it supports environmentally sustainable operations.
- Customizable Specifications: Available in various diameter, length for easy installation and different plating thicknesses ranging from 0.5μm to 5μm to meet specific industry needs.
Product Application
Providing high reliability in various corrosive environment, the platinum coated titanium rods are created especially for the hard chrome plating, metal electroplating and other industrial applications.
Hard Chrome Plating
Platinum coated titanium rod is key material in hard chrome plating, helping to achieve high-quality chrome plating effects and improving the wear resistance and corrosion resistance of the plated parts.
Metal Electroplating
Used in metal plating tanks, the rods play an important role in general metal electroplating, ensuring the uniformity and stability of the electroplating process and improving the quality of the plated layer.
FAQ
Q: What makes the Platinium Coated Titanium Rod suitable for electro-oxidation?
A: Its platinum coating offers excellent conductivity and corrosion resistance, making it highly effective for electrochemical processes.
Q: How long does the rod typically last?
A: The service life of the rod depends on electrolyte and current density. With proper usage, the rod's lifespan can expand for a long time due to the durable titanium core and corrosion-resistant platinum coating.
Q: Can the rod be customized?
A: Yes, we offer customization options for diameter, length, and plating thickness to suit specific applications and performance requirements.
