Cathodic protection systems play a crucial role in safeguarding metal structures from corrosion, particularly in harsh environments. Among the various types of anodes used in these systems, Mixed Metal Oxide (MMO) mesh anodes have gained significant attention due to their remarkable efficiency and durability. This blog post delves into the efficiency of MMO mesh anodes in cathodic protection systems, exploring their characteristics, applications, and advantages over traditional anodes.

What are the advantages of using MMO Titanium Mesh Anodes in cathodic protection?

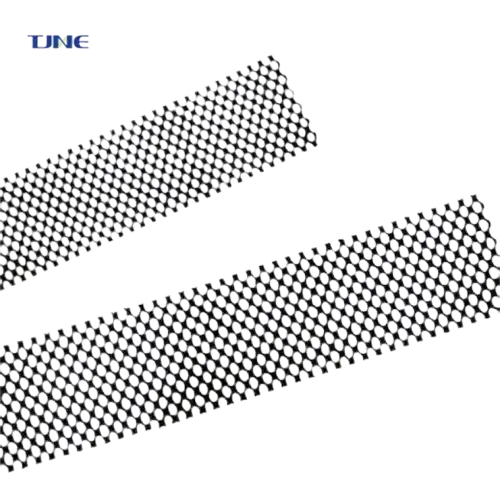

MMO Titanium Mesh Anodes offer several distinct advantages in cathodic protection systems, making them a preferred choice for many applications. These anodes consist of a titanium substrate coated with a mixture of precious metal oxides, typically including iridium, ruthenium, and tantalum. The mesh structure provides a large surface area, enhancing the anode's performance and efficiency.

One of the primary advantages of MMO Titanium Mesh Anodes is their exceptional durability. The titanium substrate offers excellent resistance to corrosion, while the mixed metal oxide coating provides a stable and long-lasting catalytic surface. This combination results in an anode with an extended lifespan, often lasting 20 years or more in many applications. The longevity of these anodes translates to reduced maintenance costs and fewer system interruptions, making them a cost-effective solution for long-term cathodic protection.

Another significant advantage is the high current output capacity of MMO Titanium Mesh Anodes. The mesh structure allows for uniform current distribution across the entire surface area, ensuring effective protection of the cathode. This design also helps to minimize the resistance between the anode and the electrolyte, resulting in lower power consumption and improved energy efficiency. The high current output capacity makes these anodes particularly suitable for large-scale applications or environments with high corrosion risks.

MMO Titanium Mesh Anodes also exhibit excellent chemical stability, allowing them to perform effectively in a wide range of environments. Whether used in seawater, freshwater, or soil applications, these anodes maintain their performance without significant degradation. This versatility makes them suitable for various industries, including offshore oil and gas, marine structures, and underground pipelines.

Furthermore, the lightweight nature of titanium mesh anodes offers practical advantages in terms of installation and handling. Compared to traditional anodes like high-silicon cast iron, MMO titanium mesh anodes are much lighter, making them easier to transport, install, and replace when necessary. This characteristic is particularly beneficial in offshore or remote applications where logistics can be challenging.

The environmental impact of MMO Titanium Mesh Anodes is also worth noting. These anodes produce minimal chlorine as a by-product during operation, making them a more environmentally friendly option compared to some traditional anodes. Additionally, their long lifespan and energy efficiency contribute to reduced resource consumption over time.

How does the performance of MMO Titanium Mesh Anodes compare to traditional anodes?

When evaluating the efficiency of cathodic protection systems, it's essential to compare the performance of MMO Titanium Mesh Anodes with traditional anodes such as graphite, high-silicon cast iron, and platinum-clad materials. This comparison provides valuable insights into the advancements in anode technology and helps to understand why MMO anodes have become increasingly popular in recent years.

One of the most significant performance advantages of MMO Titanium Mesh Anodes is their superior current efficiency. Traditional anodes like graphite and high-silicon cast iron typically have current efficiencies ranging from 50% to 80%, depending on the operating conditions. In contrast, MMO anodes can achieve current efficiencies of up to 90% or higher. This higher efficiency means that more of the applied current is utilized for cathodic protection, resulting in more effective corrosion prevention and reduced power consumption.

The consumption rate of anodes is another critical factor in comparing performance. Traditional anodes, particularly graphite and high-silicon cast iron, have relatively high consumption rates. This means they gradually dissolve over time, requiring more frequent replacements. MMO Titanium Mesh Anodes, on the other hand, have an extremely low consumption rate. The titanium substrate does not participate in the electrochemical reaction, and the mixed metal oxide coating is highly stable. As a result, MMO anodes can last significantly longer than traditional anodes, often providing effective protection for 20 years or more without replacement.

In terms of current distribution, MMO Titanium Mesh Anodes offer superior performance compared to traditional rod or tubular anodes. The mesh structure provides a larger surface area and allows for more uniform current distribution. This characteristic is particularly beneficial in applications where even protection of large structures is crucial, such as in the protection of storage tank bottoms or large marine structures. Traditional anodes may require more complex designs or multiple anode placements to achieve similar current distribution.

The operating voltage is another area where MMO Titanium Mesh Anodes demonstrate superior performance. These anodes can operate at lower voltages compared to traditional anodes, particularly in seawater applications. Lower operating voltages translate to reduced power consumption and improved energy efficiency of the entire cathodic protection system. This advantage becomes particularly significant in large-scale applications or in remote locations where power availability may be limited.

When it comes to chlorine generation, which can be a concern in some applications, MMO Titanium Mesh Anodes perform favorably compared to traditional anodes. While all anodes used in chloride-containing environments produce some level of chlorine as a by-product, MMO anodes generate significantly less chlorine than traditional anodes at equivalent current densities. This reduced chlorine generation is beneficial both from an environmental perspective and in applications where chlorine production could be problematic.

The versatility of MMO Titanium Mesh Anodes also contributes to their superior performance in various environments. While some traditional anodes may be limited to specific applications due to their material properties, MMO anodes can perform effectively in a wide range of electrolytes, including seawater, freshwater, and soil. This versatility allows for more standardized cathodic protection system designs across different applications, potentially simplifying inventory management and maintenance procedures.

How do environmental factors affect the efficiency of MMO Titanium Mesh Anodes?

The efficiency of MMO Titanium Mesh Anodes in cathodic protection systems can be influenced by various environmental factors. Understanding these influences is crucial for optimizing anode performance and ensuring effective corrosion protection across different applications and conditions.

One of the primary environmental factors affecting MMO anode efficiency is the conductivity of the electrolyte. In high-conductivity environments, such as seawater, MMO Titanium Mesh Anodes typically demonstrate excellent efficiency. The high conductivity allows for effective current flow between the anode and the cathode, resulting in optimal protection. However, in low-conductivity environments, such as freshwater or some soil conditions, the efficiency may be somewhat reduced. In these cases, careful design considerations, such as adjusting the anode spacing or increasing the applied voltage, may be necessary to maintain effective protection.

Temperature is another significant environmental factor that can impact the efficiency of MMO Titanium Mesh Anodes. Generally, these anodes perform well across a wide temperature range, from freezing conditions to elevated temperatures. However, extreme temperature fluctuations can affect the electrochemical reactions at the anode surface. In very cold environments, the reaction kinetics may slow down, potentially requiring higher voltages to maintain the desired current output. Conversely, in high-temperature environments, the increased reaction rates may lead to slightly higher anode consumption, although this effect is typically minimal for MMO anodes compared to traditional materials.

The pH of the surrounding environment also plays a role in anode efficiency. MMO Titanium Mesh Anodes are known for their stability across a wide pH range, which contributes to their versatility. However, extreme pH conditions, particularly highly acidic environments, can potentially affect the long-term stability of the mixed metal oxide coating. In such cases, special consideration may be given to the composition of the oxide coating to ensure optimal performance and longevity.

Water flow and turbulence are environmental factors that can significantly impact anode efficiency, especially in marine applications. High water flow rates can lead to increased oxygen availability at the cathode surface, potentially reducing the effectiveness of the cathodic protection. Additionally, strong currents or turbulence may cause physical stress on the anode structure. However, the mesh design of MMO Titanium Anodes provides an advantage in these conditions, as it allows water to flow through the anode, reducing drag and minimizing the risk of physical damage.

The presence of marine growth or scale formation can also affect the efficiency of MMO Titanium Mesh Anodes. While these anodes are generally resistant to fouling, severe marine growth can potentially reduce the effective surface area of the anode, impacting its performance. Regular inspection and cleaning may be necessary in environments prone to heavy biofouling. However, the open structure of mesh anodes often allows for better performance in these conditions compared to solid anodes.

Soil resistivity is a crucial factor in underground applications of MMO Titanium Mesh Anodes. In high-resistivity soils, the current distribution from the anode may be limited, potentially reducing the overall efficiency of the cathodic protection system. In such cases, careful anode placement and the use of backfill materials can help optimize performance. The flexibility of mesh anodes in terms of size and shape can be particularly advantageous in adapting to varying soil conditions.

The presence of stray currents in the environment, often from nearby electrical systems or other cathodic protection installations, can also impact the efficiency of MMO Titanium Mesh Anodes. These stray currents can interfere with the intended current distribution, potentially leading to under-protection in some areas and over-protection in others. Proper system design and the use of isolation techniques can help mitigate these effects.

Atmospheric conditions, particularly in above-ground applications, can influence anode efficiency. Exposure to UV radiation, temperature cycles, and atmospheric pollutants can potentially affect the long-term stability of the mixed metal oxide coating. However, MMO Titanium Mesh Anodes are generally well-suited to withstand these conditions, often outperforming traditional anodes in atmospheric exposure.

The chemical composition of the electrolyte, beyond just its conductivity, can also play a role in anode efficiency. The presence of certain ions or contaminants may influence the electrochemical reactions at the anode surface. For instance, the presence of chloride ions in seawater applications contributes to the formation of a thin, protective oxide layer on the titanium substrate, enhancing the anode's durability.

Lastly, it's important to consider the potential for mechanical damage from environmental factors. In applications where there is a risk of impact from debris or ice, the robust nature of MMO Titanium Mesh Anodes provides an advantage. The flexible mesh structure can absorb impacts better than rigid, solid anodes, helping to maintain system integrity even in harsh conditions.

Understanding these environmental influences allows for better system design and maintenance practices, ensuring that MMO Titanium Mesh Anodes operate at peak efficiency across a wide range of applications and conditions. By carefully considering these factors, engineers and operators can optimize cathodic protection systems for maximum effectiveness and longevity.

If you are interested in the products of Xi'an Taijin New Energy Technology Co., Ltd., please contact yangbo@tjanode.com.

References

1. Crundwell, F. K. (2010). "Sacrificial anodes and impressed current cathodic protection." In Extractive Metallurgy of Nickel, Cobalt and Platinum Group Metals (pp. 327-339). Elsevier.

2. Ashworth, V. (2010). "Principles of cathodic protection." In Shreir's Corrosion (pp. 2747-2762). Elsevier.

3. Baeckmann, W. V., Schwenk, W., & Prinz, W. (1997). Handbook of cathodic corrosion protection. Gulf Professional Publishing.

4. Gurrappa, I. (2005). "Cathodic protection of cooling water systems and selection of appropriate materials." Journal of materials processing technology, 166(2), 256-267.

5. Keating, A., & Fagan, C. (2017). "Cathodic protection: A review of standards, recommended practices and research." In Proceedings of the International Conference on Ocean, Offshore and Arctic Engineering.

6. Liang, M., Jin, N., & Lu, Y. (2020). "Recent progress in mixed metal oxide anodes for impressed current cathodic protection." Corrosion Science, 170, 108696.

7. Pedeferri, P. (1996). "Cathodic protection and cathodic prevention." Construction and Building Materials, 10(5), 391-402.

8. Roberge, P. R. (2008). Corrosion engineering: principles and practice. McGraw-Hill Education.

9. Santana Diaz, E., & Adey, R. (2005). "Optimising the location of anodes in cathodic protection systems to smooth potential distribution." Advances in Engineering Software, 36(9), 591-598.

10. Zhang, X. G. (1996). "Galvanic corrosion of zinc and its alloys." Journal of the Electrochemical Society, 143(4), 1472.
