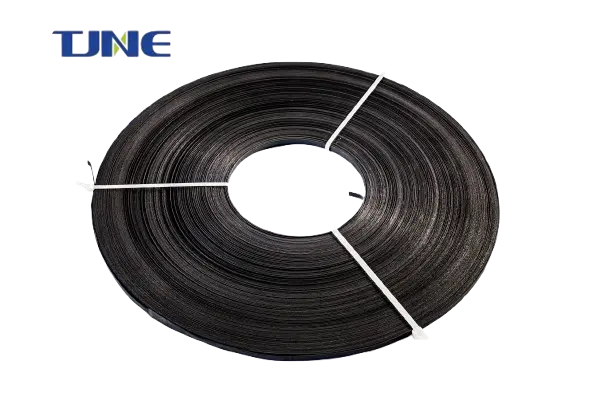

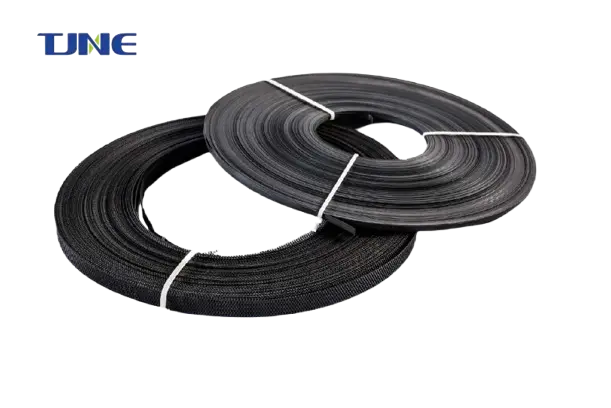

Mixed Metal Oxide (MMO) Ribbon Anodes have revolutionized the field of cathodic protection, offering a highly effective solution for corrosion prevention in various industries. These innovative anodes are composed of a titanium substrate coated with a mixture of precious metal oxides, typically including iridium, tantalum, and ruthenium. The unique composition of MMO Ribbon Anodes provides them with exceptional durability, efficiency, and versatility in corrosion protection applications.

The titanium base serves as an excellent conductor and provides structural integrity to the anode. Meanwhile, the mixed metal oxide coating acts as the catalytic surface, facilitating the electrochemical reactions necessary for cathodic protection. This combination results in an anode that offers superior performance and longevity compared to traditional materials.

Let's delve deeper into the world of MMO Ribbon Anodes, exploring their advantages, applications, and installation methods.

How do MMO Ribbon Anodes compare to traditional anodes in cathodic protection systems?

MMO Ribbon Anodes represent a significant advancement in cathodic protection technology when compared to traditional anodes such as graphite, high silicon cast iron, or platinum-coated materials. The key differences lie in their composition, performance, and longevity.

Composition: Traditional anodes often consist of sacrificial materials like zinc, aluminum, or magnesium, which corrode over time to protect the target structure. In contrast, MMO Ribbon Anodes are inert and do not consume themselves during the protection process. Their titanium substrate provides excellent conductivity and mechanical strength, while the mixed metal oxide coating offers a stable, catalytic surface for electron transfer.

Performance: MMO Ribbon Anodes exhibit superior current distribution due to their ribbon-like shape and uniform composition. This allows for more even protection across large surfaces, such as pipelines or storage tanks. Traditional anodes may suffer from uneven current distribution, leading to hotspots or underprotected areas.

The catalytic properties of the mixed metal oxide coating also enable MMO Ribbon Anodes to operate at lower voltages compared to traditional anodes. This results in reduced power consumption and improved energy efficiency in cathodic protection systems.

Longevity: One of the most significant advantages of MMO Ribbon Anodes is their exceptional lifespan. While traditional sacrificial anodes may need replacement every few years, MMO Ribbon Anodes can last for decades with proper maintenance. This extended service life is due to their inert nature and resistance to degradation in harsh environments.

Versatility: MMO Ribbon Anodes can be used in a wide range of environments, including soil, freshwater, and seawater. Their flexible design allows for easy installation in various configurations, making them suitable for protecting complex structures such as reinforced concrete, underground pipelines, and offshore platforms.

Cost-effectiveness: Although the initial cost of MMO Ribbon Anodes may be higher than traditional anodes, their long-term benefits often result in significant cost savings. The reduced need for replacements, lower power consumption, and improved protection efficiency contribute to a lower total cost of ownership over the life of the cathodic protection system.

Environmental impact: MMO Ribbon Anodes have a lower environmental impact compared to sacrificial anodes. Since they do not dissolve into the surrounding environment, they minimize the release of potentially harmful metals. Additionally, their energy efficiency and long lifespan contribute to reduced resource consumption and waste generation.

What are the key advantages of using MMO Ribbon Anodes in corrosion prevention?

MMO Ribbon Anodes offer numerous advantages in corrosion prevention, making them an increasingly popular choice across various industries. Let's explore the key benefits that set these anodes apart in the field of cathodic protection.

1. Exceptional durability: The combination of a titanium substrate and mixed metal oxide coating provides MMO Ribbon Anodes with outstanding resistance to wear and corrosion. This durability translates to a significantly longer operational life compared to traditional anodes, reducing the frequency of replacements and associated maintenance costs.

2. High current output: The catalytic properties of the mixed metal oxide coating allow MMO Ribbon Anodes to deliver high current densities efficiently. This high output capacity means that fewer anodes are required to protect large structures, simplifying system design and reducing installation costs.

3. Low consumption rate: Unlike sacrificial anodes, MMO Ribbon Anodes are dimensionally stable and do not consume themselves during the protection process. This characteristic contributes to their long lifespan and reduces the need for frequent replacements, making them ideal for remote or hard-to-access locations.

4. Flexible design: The ribbon-like structure of these anodes offers great flexibility in installation. They can be easily shaped to fit complex geometries or wound around cylindrical structures, ensuring comprehensive protection for a wide range of applications.

5. Uniform current distribution: The elongated shape of MMO Ribbon Anodes promotes even current distribution along their length. This uniform distribution helps eliminate hot spots and ensures consistent protection across the entire structure, enhancing the overall effectiveness of the cathodic protection system.

6. Low operating voltage: MMO Ribbon Anodes can operate effectively at lower voltages compared to many traditional anode materials. This lower voltage requirement translates to reduced power consumption and improved energy efficiency, leading to cost savings over the system's lifetime.

7. Versatility in environments: These anodes perform well in a variety of environments, including soil, freshwater, and seawater. Their ability to function effectively in different electrolytes makes them suitable for diverse applications, from underground pipelines to offshore structures.

8. Minimal environmental impact: As inert anodes, MMO Ribbon Anodes do not release potentially harmful metals into the surrounding environment. This characteristic, combined with their energy efficiency and long lifespan, contributes to a reduced environmental footprint compared to sacrificial anode systems.

9. Ease of monitoring: The stable performance characteristics of MMO Ribbon Anodes make it easier to monitor and maintain cathodic protection systems. Their consistent output allows for more accurate predictions of system performance and simplifies long-term maintenance planning.

10. Compatibility with impressed current systems: MMO Ribbon Anodes are particularly well-suited for use in impressed current cathodic protection (ICCP) systems. Their ability to handle high current densities and operate at low voltages makes them ideal for large-scale protection projects where precise control over the protection current is required.

These advantages make MMO Ribbon Anodes an attractive option for corrosion prevention in various industries, including oil and gas, water treatment, marine applications, and infrastructure protection. Their ability to provide long-lasting, efficient, and environmentally friendly cathodic protection has led to their increasing adoption in both new installations and as upgrades to existing systems.

How are MMO Ribbon Anodes installed and maintained in various applications?

The installation and maintenance of MMO Ribbon Anodes vary depending on the specific application and environment. However, their flexible design and durability generally allow for versatile installation methods and relatively low maintenance requirements. Let's explore the installation processes and maintenance practices for MMO Ribbon Anodes in different scenarios.

Installation Methods:

1. Soil applications:

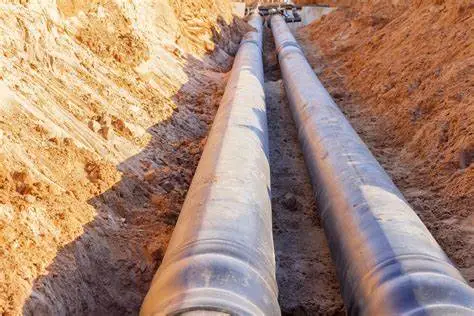

- Horizontal installation: For protecting pipelines or large underground structures, MMO Ribbon Anodes are often installed in horizontal trenches parallel to the protected structure. The anodes are typically laid in a bed of carbonaceous backfill material, which enhances conductivity and extends the anode's life.

- Vertical installation: In some cases, particularly for deep well applications or when horizontal space is limited, MMO Ribbon Anodes can be installed vertically. They are lowered into pre-drilled holes and surrounded by a conductive backfill material.

2. Concrete structures:

- For reinforced concrete structures, MMO Ribbon Anodes can be installed during construction or as part of a rehabilitation project. In new construction, the anodes are typically tied to the reinforcing steel before concrete placement. For existing structures, they can be installed in drilled holes or surface-mounted channels and then covered with a cementitious overlay.

3. Marine applications:

- Offshore structures: MMO Ribbon Anodes can be attached directly to the structure using specially designed clamps or brackets. They may also be suspended from the structure using a weighted cable system.

- Ship hulls: The anodes can be mounted flush with the hull surface or in recessed areas to minimize drag.

4. Water tanks and reservoirs:

- MMO Ribbon Anodes can be suspended from the roof of the tank or installed along the walls. In some cases, they may be installed in a grid pattern on the tank floor.

Installation Considerations:

- Electrical connections: Proper electrical connections are crucial for the effectiveness of the cathodic protection system. Connections between the anodes and the power source should be secure, waterproof, and resistant to corrosion.

- Spacing and distribution: The spacing and distribution of MMO Ribbon Anodes are determined based on the size and geometry of the protected structure, as well as the specific environmental conditions.

- Backfill material: In soil applications, the choice of backfill material is important. A low-resistance, carbonaceous backfill is often used to enhance current output and extend anode life.

Maintenance Practices:

1. Regular inspections: Periodic visual inspections should be conducted to check for any physical damage to the anodes or their connections. The frequency of inspections depends on the application and environmental conditions.

2. Electrical measurements: Regular measurements of anode current output, system voltage, and structure potential are essential to ensure the cathodic protection system is functioning correctly. These measurements help identify any degradation in performance over time.

3. Cleaning: In some environments, particularly marine applications, periodic cleaning may be necessary to remove calcareous deposits or marine growth that could interfere with anode performance.

4. Adjustment of power output: Based on the results of electrical measurements, the power output of the impressed current system may need to be adjusted to maintain optimal protection levels.

5. Replacement of failed anodes: Although MMO Ribbon Anodes have a long lifespan, individual anodes may occasionally fail due to physical damage or localized degradation. These should be identified through regular monitoring and replaced as needed.

6. Monitoring of environmental conditions: Changes in the surrounding environment, such as soil resistivity or water chemistry, can affect the performance of the cathodic protection system. Regular monitoring of these factors helps in making necessary adjustments to maintain protection levels.

7. Documentation: Maintaining detailed records of installation, inspections, measurements, and any maintenance activities is crucial for long-term management of the cathodic protection system.

8. Training: Ensuring that maintenance personnel are properly trained in the specifics of MMO Ribbon Anode systems is important for effective long-term maintenance.

The installation and maintenance of MMO Ribbon Anodes require careful planning and execution to ensure optimal performance and longevity. While the initial installation may be more complex compared to traditional anode systems, the long-term benefits in terms of performance, durability, and reduced maintenance requirements often justify the investment. As with any cathodic protection system, regular monitoring and proactive maintenance are key to ensuring continued effectiveness in corrosion prevention.
