Product Details

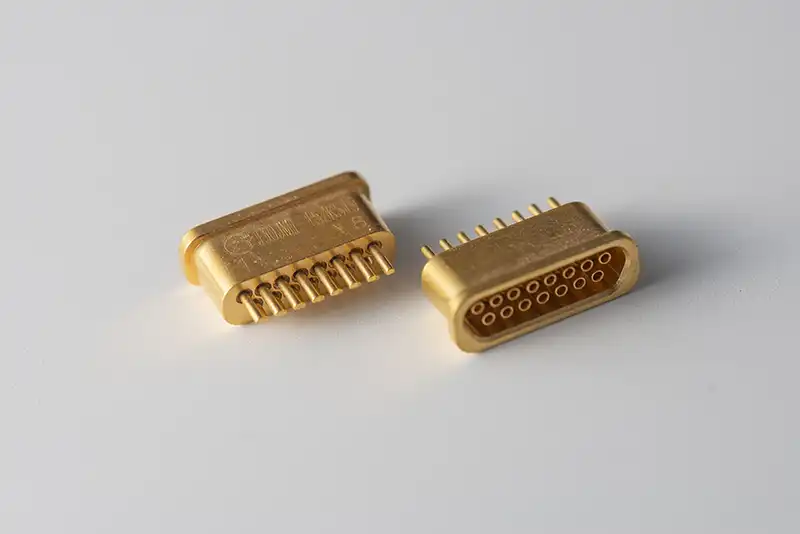

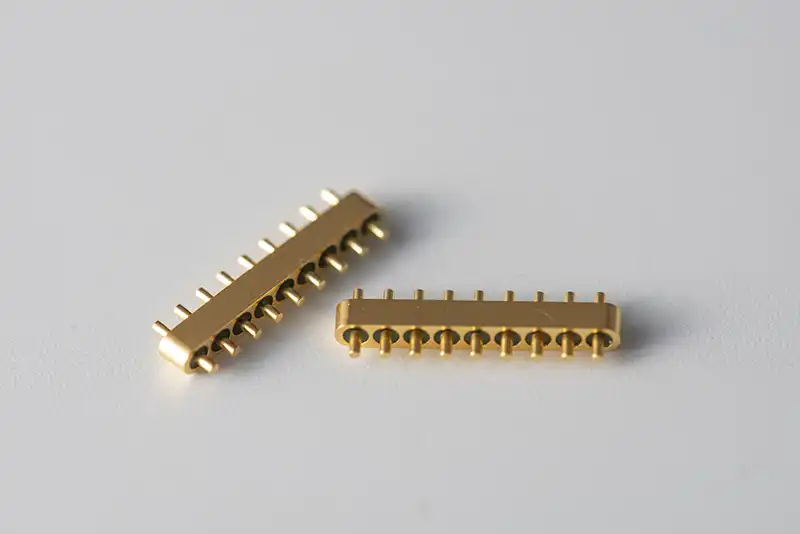

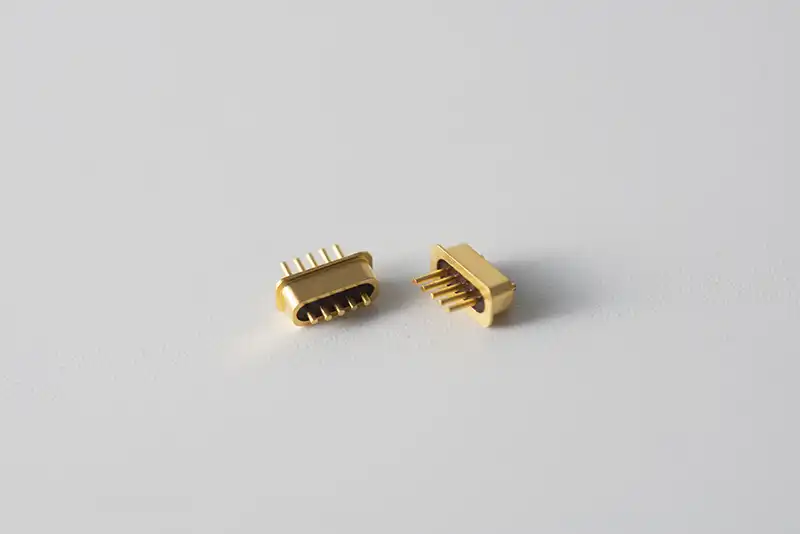

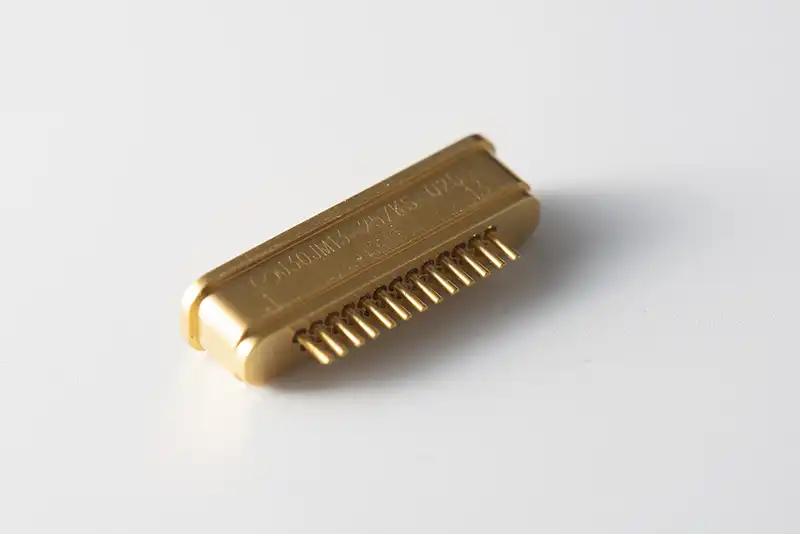

The Micro-D connector is a miniature, high-density interconnect solution designed for applications requiring reliable signal transmission in a compact form factor. It offers exceptional performance and versatility in various demanding environments, making it an ideal choice for critical electronic connections.It is characterized by its small size, high contact density, and robust construction. It is engineered to meet the stringent requirements of aerospace, military, medical, and industrial applications where space-saving and high-reliability connections are essential. The connector's compact design enables it to deliver reliable electrical performance in challenging operating conditions.

Performance Parameters

Parameter	Value
Contact Spacing (Pitch)	1.27mm (Micro-D 9),1.27mm (Micro-D 15)
Current Rating	Up to 3A
Operating Temperature	-55°C to +125°C
Insulation Resistance	5000MΩ at 300 VDC
Durability	Up to 1000+,500+ mating cycles

Features and Advantages

Features:

Miniature Estimate: Micro-D connectors are compact in measure, making them reasonable for applications where space is constrained or where a littler impression is desired.

High-Density Plan: In spite of their little measure, they offer tall contact thickness, permitting for a more noteworthy number of contacts inside a limited space.

Robust Development: These connectors are built with tough materials and development methods to withstand unforgiving natural conditions, mechanical stretch, and vibration.

Precision Designing: They are built with accuracy to guarantee precise arrangement and mating, minimizing flag misfortune and guaranteeing solid electrical performance.

Advantages:

Space Sparing: The compact measure of them spares important space, making them perfect for applications where estimate and weight are basic variables, such as aviation and military systems.

High-Density Network: They offer tall contact thickness, permitting for the transmission of various signals or information channels inside a little shape factor.

Durability: With their strong development, They are outlined to withstand cruel situations, making them appropriate for utilize in tough applications such as mechanical apparatus and open air equipment.

Reliability: They give dependable electrical execution, guaranteeing steady flag transmission and minimizing the hazard of downtime or framework disappointment.

Application Areas

Aviation and Defense: Micro-D connectors are broadly utilized in aviation and defense applications due to their compact estimate, tall unwavering quality, and rough development. They are utilized in aeronautics frameworks, military air ship, satellites, rockets, unmanned ethereal vehicles (UAVs), ground vehicles, and shipboard electronics.

Military Communications: They are utilized in military communication frameworks for transmitting signals between radios, recieving wires, observation hardware, and command centers. Their compact measure and strong plan make them appropriate for utilize in strategic communication frameworks conveyed in cruel environments.

Medical Gadgets: They are utilized in therapeutic gadgets and hardware for applications such as persistent observing, symptomatic imaging, surgical disobedient, and restorative mechanical autonomy. They give solid associations for transmitting signals between therapeutic sensors, imaging gadgets, and control frameworks in clinics and healthcare facilities.

Industrial Mechanization: They discover application in mechanical robotization frameworks, counting mechanical autonomy, plant computerization, machine vision, and control frameworks. They empower solid flag transmission between sensors, actuators, controllers, and other robotization components, contributing to the productivity and efficiency of fabricating forms.

FAQ

Q:How do I select the right Micro-D connector for my application?

A:The selection of a Micro-D depends on factors such as contact arrangement, mounting style, termination method, environmental requirements, and industry standards. Consulting with a connector manufacturer or distributor can help in choosing the appropriate connector for a specific application.

Q:What are the considerations for installing and terminating Micro-D?

A:Installation and termination procedures for them may vary depending on the connector type and application requirements. It is essential to follow manufacturer guidelines and specifications to ensure proper installation and reliable performance.

In conclusion

TJNE is a professional manufacturer and supplier of them, offering strong technical expertise, comprehensive after-sales service, complete certification and testing reports, fast delivery, secure packaging, and testing support. If you are seeking high-quality Micro-D connectors tailored to your specific requirements, we welcome you to contact yangbo@tjanode.com for personalized solutions.
